Is It Better to Put Gravel or Sand Under Concrete Slabs?

If you're wondering whether gravel or sand is better under concrete slabs, gravel is the clear winner in most cases. Gravel provides stronger support, better drainage, and long-term stability three things that sand just can’t match. While sand can be used for small, light-duty applications like decorative walkways or small patios, it shifts more easily, traps moisture, and creates the perfect conditions for cracks and settling.

So yes gravel is better than sand under concrete slabs, especially for driveways, patios, or any project that needs to handle weight and weather. Crushed stone (like ¾-inch gravel) is the go-to for pros because it locks in place when compacted, drains well, and meets code requirements for strength and support. Sand might be cheaper upfront, but gravel wins in the long run by keeping your slab strong and intact.

The information helps property owners and contractors make informed decisions for residential concrete projects.

What Makes Subbase Material Critical for Concrete Success?

Proper subbase material prevents concrete failure and extends slab lifespan. Poor subbase choices cause cracking, settling, and premature concrete deterioration.

Concrete slabs need stable support systems. The subbase distributes weight evenly across the ground surface. Poor materials create weak points where concrete cracks or sinks. This applies to all concrete installations, from driveways to concrete patios.

Concrete Problems Without Proper Subbase

Direct soil contact causes multiple concrete issues:

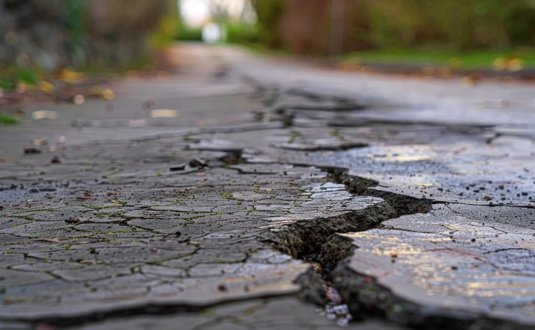

• Uneven settling creates cracks and surface damage
• Water pooling leads to erosion and foundation problems

Poor drainage under slabs creates freeze-thaw damage in cold climates. Expanding ice pushes concrete upward, causing structural cracks.

Three-Layer Foundation System

Standard concrete installations use three distinct layers:

Subgrade: Natural soil compacted to proper density Subbase: Gravel or sand layer providing drainage and support Concrete Slab: Final concrete surface

Each layer serves specific structural functions. The subgrade provides base support. The subbase distributes loads and manages drainage. The concrete slab creates the finished surface.

How Does Gravel Compare to Sand for Load-Bearing Strength?

Gravel provides significantly higher load-bearing capacity than sand. Angular gravel pieces interlock when compacted, creating stable foundations. Sand particles remain loose and shift under weight.

This strength difference becomes critical for heavy-duty applications like driveways and commercial installations.

Gravel Structural Properties

Crushed gravel creates mechanical bonds between particles. Angular edges lock together under compression. This interlocking prevents movement and provides stable support.

Standard 3/4-inch crushed stone supports vehicle loads without settling. The American Concrete Institute recommends angular crushed materials for optimal concrete support. The material maintains shape under repeated loading cycles.

Sand Limitations

Sand particles are rounded and smooth. They cannot interlock effectively under pressure. Sand shifts when exposed to moisture changes or vibration.

Fine sand traps water between particles. This creates unstable conditions that lead to concrete settling and cracking.

Which Material Provides Better Drainage Performance?

Gravel offers superior drainage compared to sand. Large void spaces between gravel particles allow rapid water movement. Sand creates drainage barriers that trap moisture.

Gravel Drainage Benefits

Crushed stone contains 30-40% void space. Water flows freely through these openings. Proper grading directs water away from concrete surfaces.

Good drainage prevents:

• Soil erosion under slabs
• Freeze-thaw damage
• Foundation settlement
• Moisture problems

Sand Drainage Problems

Fine sand particles create small pore spaces. Water moves slowly through these restrictions. Clay particles in sand can completely block drainage.

Trapped water under concrete causes multiple problems. Saturated sand loses bearing capacity. Wet conditions promote concrete deterioration.

What Types of Gravel Work Best Under Concrete?

Three-quarter inch crushed stone provides optimal concrete support. This size offers the best balance of drainage and compaction properties.

Recommended Gravel Types

Crushed Stone (#57): Angular particles ranging from 1/2 to 1 inch. Excellent compaction and drainage properties.

Crusher Run: Mixed-size crushed stone with fine particles. Compacts to high density for heavy-duty applications.

Gravel Types to Avoid

Pea Gravel: Round particles that do not compact well. Creates unstable foundation conditions.

River Rock: Smooth, rounded stones with poor interlocking properties. Not suitable for structural support.

When Can Sand Work Under Concrete Slabs?

Sand works only for light-duty concrete applications. Small walkways and decorative slabs can use sand subbase with proper installation.

Acceptable Sand Applications

Sand subbase works for:

• Side walks with minimal traffic
• Small decorative concrete pads
• Concrete patios under 200 square feet

Sand Installation Requirements

Sand subbase needs additional concrete thickness. Soft sand support requires 1 extra inch of concrete minimum. This increases material costs significantly.

Proper sand installation requires:

• Clean, well-graded sand free from clay particles
• Thorough compaction in thin lifts

What Do Building Codes Require for Concrete Subbase?

International Residential Code requires 4-inch minimum subbase thickness. Clean graded sand, gravel, or crushed stone meets code requirements.

IRC Subbase Standards

Below-grade slabs need proper subbase materials. According to the International Code Council, the code specifies clean, graded aggregate materials. Organic materials must be removed before subbase installation.

Local Code Variations

Building departments often specify gravel sizes and types. Common requirements include:

• 3/4-inch maximum particle size
• Angular crushed stone preferred
• Proper compaction testing

How Should Subbase Material Be Installed?

Proper installation requires compaction in thin lifts with appropriate equipment. Gravel lifts should not exceed 12 inches thickness. Sand lifts require 10-inch maximum thickness.

Site Preparation Steps

• Remove organic material including topsoil and vegetation
• Grade subgrade to promote drainage away from structures

Compaction Equipment

Plate Compactors: Best for granular materials like gravel and sand. Vibrating plates densify loose particles effectively.

Rammers: Jumping jack compactors work better for clay soils. Concentrated force breaks up cohesive materials.

What Are the True Costs of Gravel vs Sand?

Gravel costs more initially but provides better long-term value. Sand requires additional concrete thickness and more frequent repairs.

Hidden Sand Costs

Sand subbase increases total project costs:

• Extra concrete thickness adds $2-4 per square foot
• Higher repair frequency increases maintenance costs
• Poor drainage causes long-term foundation problems

How Does Climate Affect Subbase Material Choice?

Cold climates require gravel for freeze-thaw resistance. Gravel drainage prevents ice formation that damages concrete. Sand retains moisture and increases freeze damage risk.

Freeze-Thaw Protection

Gravel prevents frost heave by eliminating trapped water. Open drainage removes moisture before freezing occurs. Sand holds water that expands when frozen.

Hot Climate Considerations

Desert climates require stable subbase materials. Gravel maintains consistency through temperature changes. Sand can shift during thermal expansion cycles.

What Drainage Features Work With Subbase Materials?

Vapor barriers and capillary breaks enhance subbase performance. These features prevent moisture migration into concrete slabs.

Vapor Barrier Installation

Plastic sheeting goes directly under concrete slabs. Six-mil polyethylene provides adequate moisture protection. Proper sealing prevents water vapor transmission.

Capillary Break Function

Gravel layers break capillary water movement. This prevents ground moisture from reaching concrete surfaces. Four-inch minimum thickness provides effective moisture control.

How Do Professionals Install Subbase Materials?

Commercial installations require engineered specifications and testing. Compaction density testing confirms proper installation. Residential projects use standard practices.

Quality Control Measures

Professional installations include:

• Nuclear density testing for compaction verification
• Gradation testing for material quality
• Drainage testing for water management

Professional vs DIY Installation

Large projects need professional installation. Commercial concrete requires engineered subbase design. Small residential projects can use standard practices with proper tools.

What Maintenance Do Different Subbase Materials Need?

Gravel subbase requires minimal long-term maintenance. Proper installation provides decades of stable support. Sand subbase may need periodic releveling and drainage repairs.

Gravel Performance

Well-installed gravel maintains stability over time. Drainage properties prevent moisture problems. Angular particles resist displacement under loads.

Sand Maintenance Issues

Sand subbase can develop problems:

• Settling creates uneven concrete surfaces
• Drainage blockages cause water accumulation
• Particle migration leaves void spaces

Why Choose Professional Installation for Concrete Projects?

Professional contractors provide proper subbase installation and long-term warranties. Expert installation prevents costly repairs and extends concrete lifespan.

Professional services include engineered subbase design, proper compaction testing, and quality materials. This expertise becomes essential for complex projects like outdoor kitchens and stamped concrete installations.

Contractors also handle permit requirements and building code compliance. They understand local soil conditions and drainage requirements specific to the Huntsville area.

Final Thoughts

Gravel provides superior performance for concrete subbase applications. The material offers better drainage, stability, and load-bearing capacity than sand alternatives. While gravel costs more initially, long-term performance justifies the investment.

Choose 3/4-inch crushed stone for most concrete projects. Install in compacted lifts using proper equipment. Follow local building codes for thickness and material requirements.

For concrete projects in Northern Alabama, professional installation services deliver lasting results. Quality landscaping concrete and decorative concrete installations require proper foundation preparation. Whether building residential or commercial projects, gravel subbase provides the stable foundation needed for decades of reliable performance.
